Technology that redefines imaging
At Ottomed, we believe that precision imaging is the foundation of delivering smarter healthcare. As India’s only manufacturer of flexible video endoscopes and ancillary products, we bring together advanced optical technology, sustainable innovation, and deep industry expertise to enhance lifecare through sharper visualisation, efficient diagnostics, and doctor-driven solutions.
+
Installations
+
Endoscopy Products Sold
+
Endoscopy Centres
+
Patents
Trusted by experts. Proven in performance.
mBLU
Greater Depth for Better Treatment Outcomes

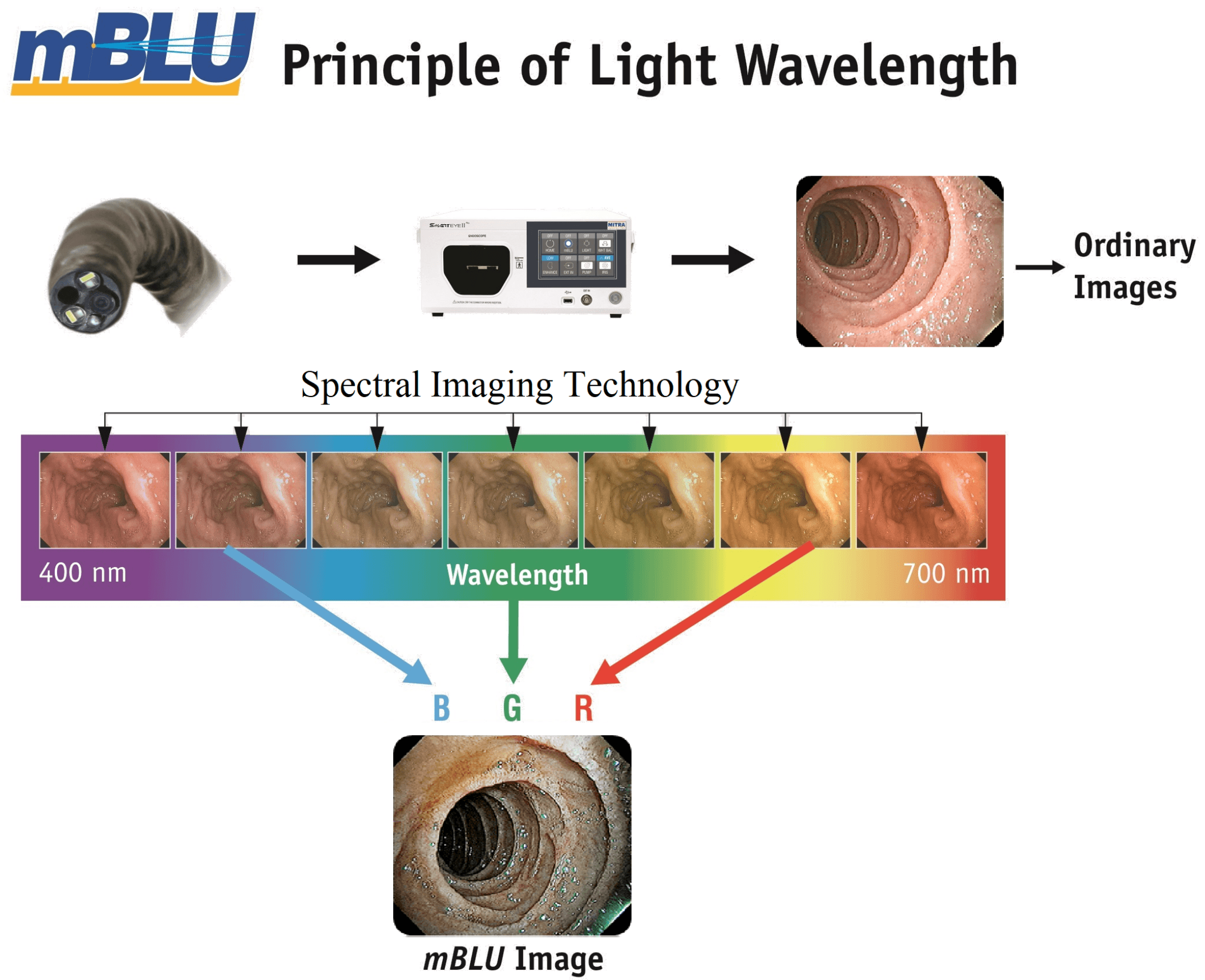

mBLU uses multi-LEDs of wavelength between 400-700nm & 450nm for enhanced mucosal and submucosal tissue visualisation. The brighter and clearer images provided by the mBLU technology enable Image-Enhanced-Endoscopy (IEE) and help detect and characterize lesions/polyps better, thus improving the chances of detecting early-stage cancer and providing high-quality lifecare.
Spectral Imaging
Deep Vascular Visualization
LED-At-Tip
One-touch Mode
Higher Diagnostic Precision

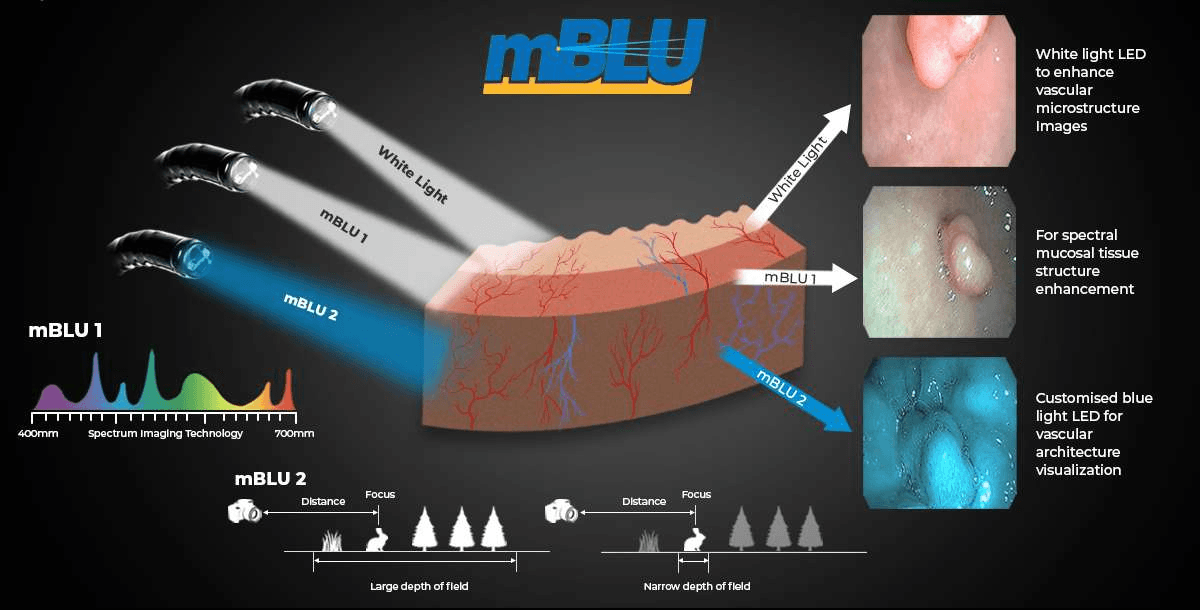

mBLU 1 Mode
Spectral Mucosal Tissue Structure Enhancement
mBLU1 enhances mucosal tissue structure visualisation, improving diagnostic yield and lesion characterization. Its spectral imaging helps detect early-stage esophageal cancer, Barrett’s dysplasia, and minimal esophagitis.
- Less invasive and more efficient than dye-based methods
- Improves the visibility of early-stage esophageal and gastric cancers
- Reduces misdiagnosis by accurately differentiating adenomas from non-adenomatous lesions
- Optimized for esophageal and gastric Conditions
mBLU 2 Mode
Vascular Architecture Visualization
mBLU2 leverages Blue Light technology to enhance submucosal vascular microarchitecture visibility, improving early cancer detection. mBLU 2 is optimised to offer a close-up or detailed view to penetrate the superficial epithelium and differentiate adenoma from invasive cancer.
- Deep Vascular Architecture Visualization
- Fiberless LED-At-Tip eliminates the need for Xenon light sources and mechanical filters
- Absorbs specific light wavelengths to highlight vascular patterns
- Designed to provide a more close-up view or detailed view
Fibreless LED-At-Tip
Brighter Illumination. Smarter Endoscopy.
The Fibreless LED-At-Tip revolutionizes endoscopy with high-intensity white-light illumination for natural image clarity. The Fibreless LED-At-Tip technology transmits light through the endoscope tip, eliminating the need for fiber optics and an extra light source.
Long-lasting LED
Lower Costs
Energy-Efficient
Eco-friendly
Compact and Portable
Superior Illumination
White Light Endoscopy (WLE)
Next-Gen White Light for Enhanced Microstructure Clarity
Unlike conventional xenon-based white light, our White Light Endoscopy (WLE) technology equips endoscopes with small LED lamps fixed at the end of the endoscope tip. LED-powered White Light Endoscopy (WLE) enhances vascular microstructures by illuminating selectively in the 400–700 nm spectrum. This technology delivers higher-intensity white illumination, sharper contrast, clearer imaging, and improved diagnostic accuracy.
LED-driven White Light provides superior contrast and sharper vascular imaging
Precise Vascular Visualization clearly depicts microstructures
Energy-efficient and Long-lasting
Reduced Heat Generation for comfortable, safe, and efficient endoscopic procedures
Consistent High-Quality Imaging with stable, flicker-free illumination

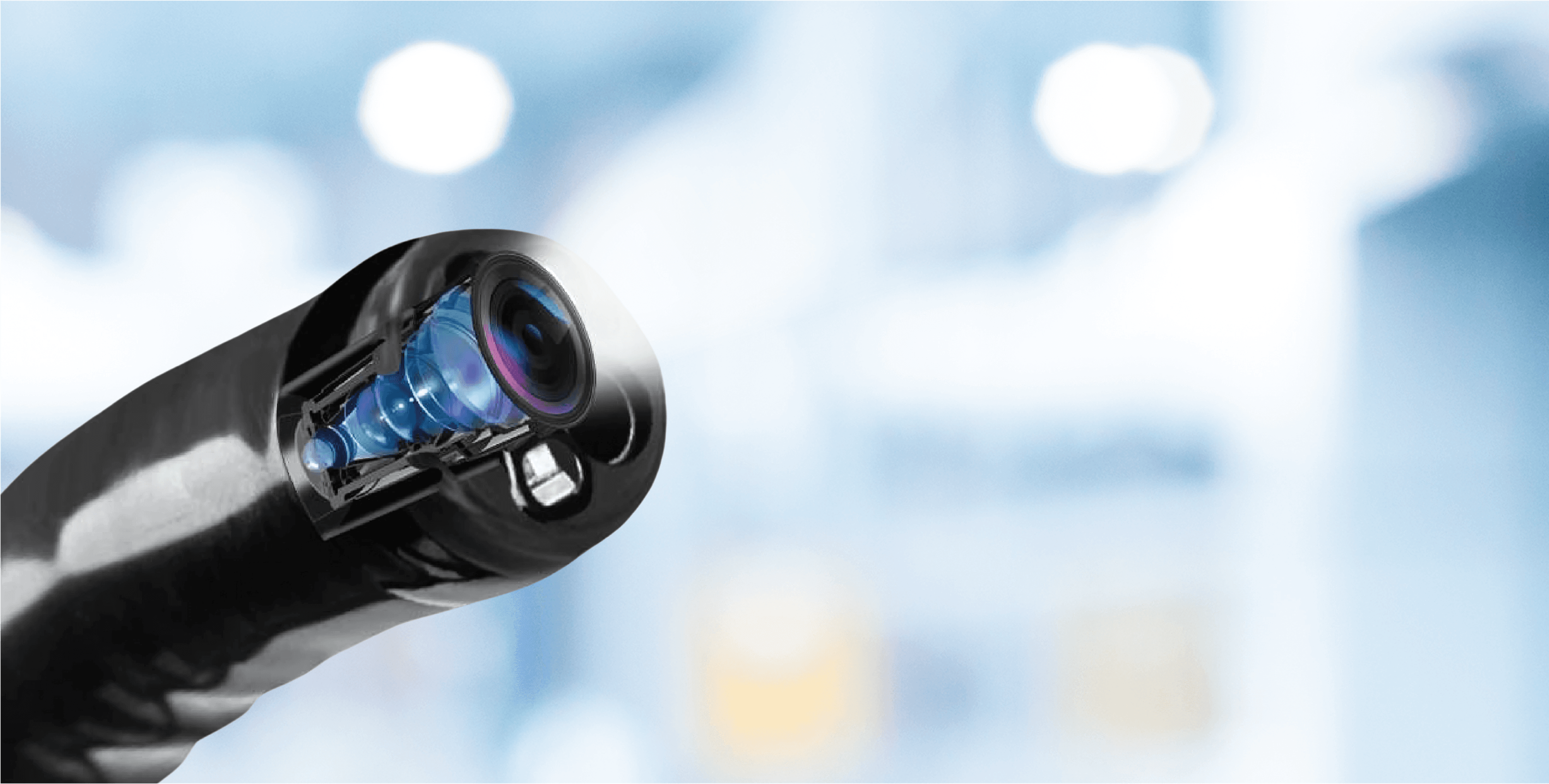

Extreme Close-Up Endoscopy (eCUE)
Up Close and Precise Endoscopic Visualization
Extreme Close-Up Endoscopy (eCUE) technology revolutionizes endoscopic imaging by providing sharp focus, extreme close-ups, and enhanced mucosal pit pattern visualisation. It is made possible by custom-developed HD microlenses that provide precise details up close, enabling accurate diagnosis, safer procedures, and superior patient outcomes.
Custom HD Micro Lenses with Adjustable Focus
One-touch Extreme Close-up Imaging
PIP and POP Display
Multi-Format Video Connectivity
Compact, portable, and Lightweight Design

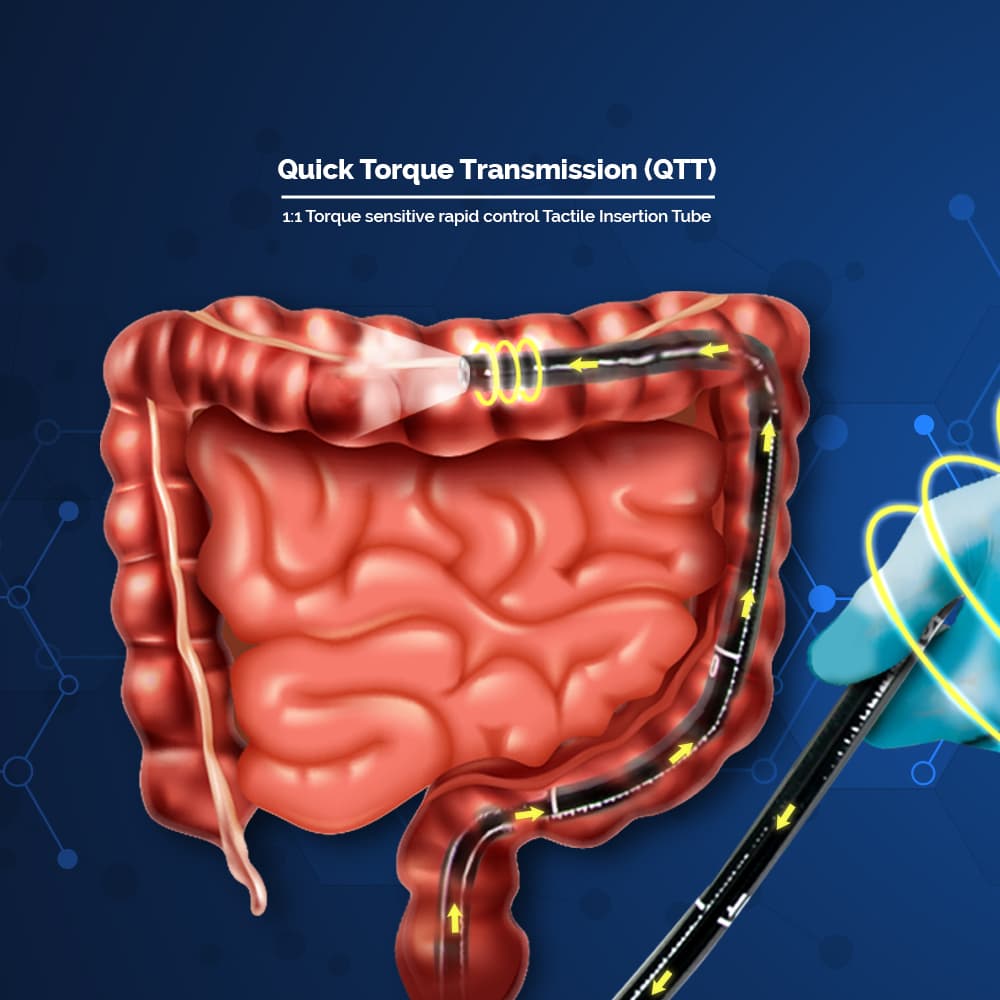

Tactile Insertion Tube Technology (TIT)
Ultimate Control. Seamless Precision.
The 1:1 torque-sensitive Tactile Insertion Tube (TIT) technology delivers rapid response and precise maneuverability, empowering endoscopists with enhanced control for minimally invasive procedures, ensuring accurate diagnostics and effective treatments.
1:1 Torque Sensitivity for precise control
Quick Torque Transmission (QTT) for immediate response, ensuring smooth maneuvering
Enhanced Tactile Feedback for a natural, intuitive feel, improving navigation through complex anatomy
Minimally Invasive reducing procedure time and patient discomfort

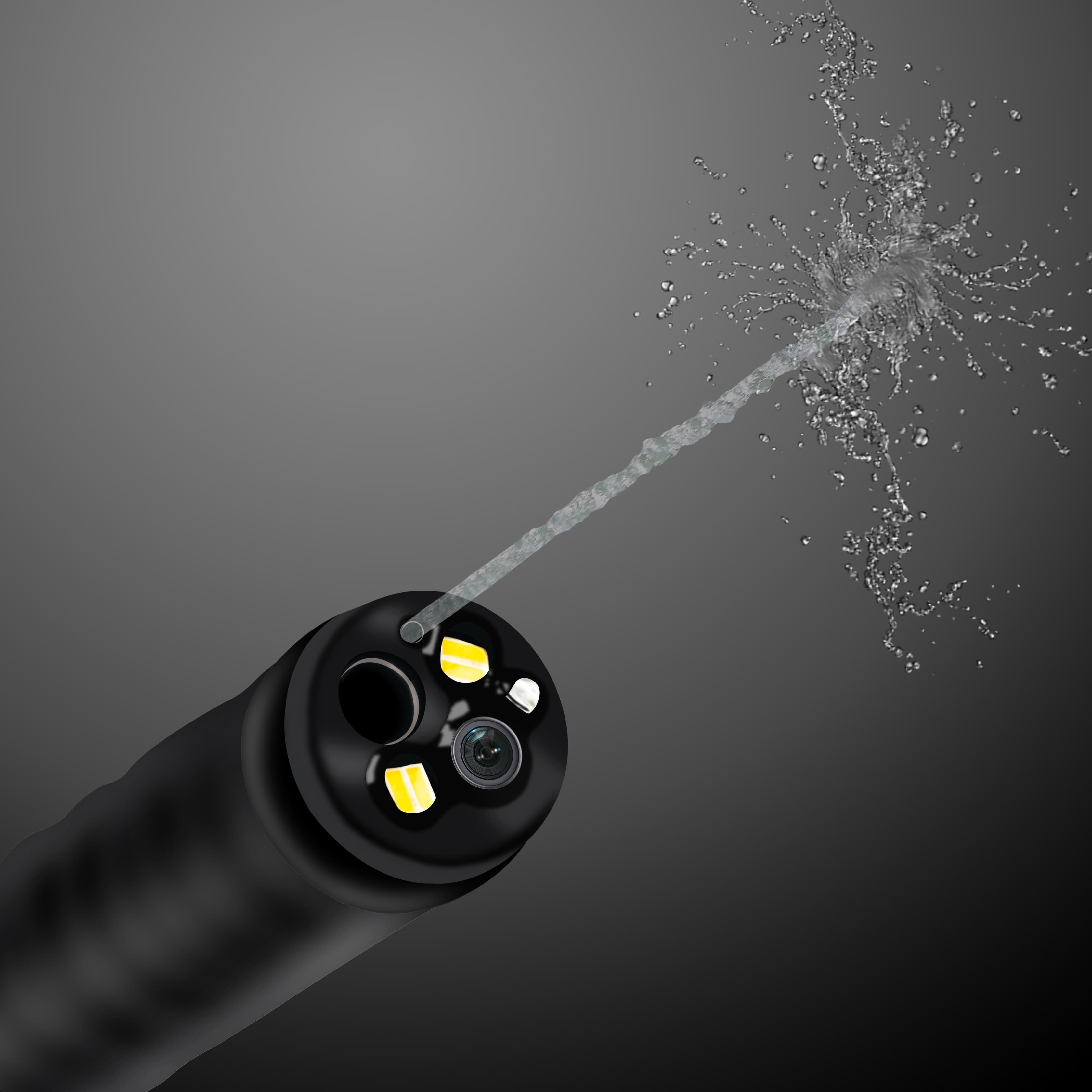

Auxiliary Water Channel
Dedicated auxiliary water channel for washing the mucosa of the GI tract.
The Auxiliary Water Channel is a dedicated water channel specifically designed for washing the mucosa of the gastrointestinal tract, providing a clean environment for endoscopic procedures.
