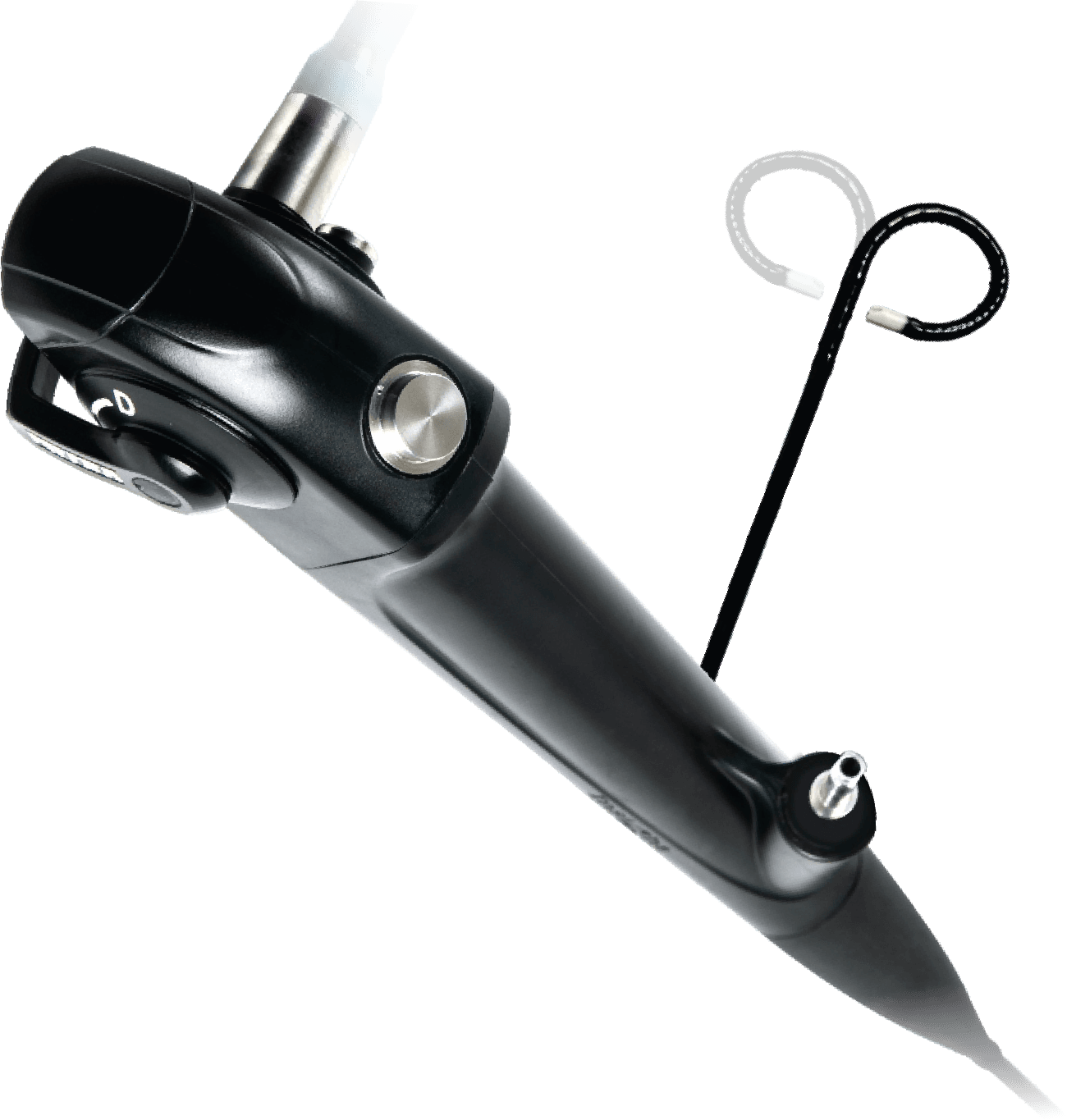

Ottomed’s Video Uteroscopes are built to deliver detailed visualisation of the uterine cavity with minimal discomfort to the patient. High-definition imaging and chromoendoscopy capabilities assist in the evaluation of endometrial abnormalities, fibroids, and polyps with exceptional clarity. Engineered with slim diameters and flexible navigation, these scopes offer enhanced reach and stability during hysteroscopic procedures. With zero-fibre durability and a user-centric design, Ottomed’s uteroscopes empower gynecologists to perform diagnostic and operative interventions with heightened confidence.
Specification | OUR-IN+ | OUR-S2+ |
---|---|---|
Image | ![]() | ![]() |
Enquire | ||
Field Of View | 120° | 120° |
Direction Of View | Forward View | Forward View |
Depth Of Field | 3-60mm | 3-60mm |
Optical Technology mBLU | mBLU mode 1 | mBLU mode 1 |
Distal End Outer Diameter | 2.85mm (Bullet Shape) | 2.85mm (Bullet Shape) |
Insertion Tube Outer Diameter | 2.85mm | 2.85mm |
Distal End Enlarged |
|
|
Working Length | 670mm | 670mm |
Channel Inner Diameter | 1.2mm | 1.2mm |
Minimum Visible Distance | 3mm from the distal end | 3mm from the distal end |
Angulation Range |
|
|
Laser Compatibility | Nd: YAG, 810nm Diode | Nd: YAG, 810nm Diode |
Compatible Video Processor | OVP-IN2, OVP-EIN | OVP-S3 |
Specification | OCY-IN+ | OCY-S2+ |
---|---|---|
Image | ![]() | ![]() |
Enquire | ||
Field Of View | 120° | 120° |
Direction Of View | Forward View | Forward View |
Depth Of Field | 3-60mm | 3-60mm |
Optical Technology mBLU | mBLU mode 1 | mBLU mode 1 |
Distal End Outer Diameter | 2.8mm (Bullet Shape) | 2.8mm (Bullet Shape) |
Insertion Tube Outer Diameter | 5.0mm | 5.0mm |
Distal End Enlarged |
|
|
Working Length | 380mm | 380mm |
Channel Inner Diameter | 2mm | 2mm |
Minimum Visible Distance | 3mm from the distal end | 3mm from the distal end |
Angulation Range |
|
|
Laser Compatibility | Nd: YAG, 810nm Diode | Nd: YAG, 810nm Diode |
Compatible Video Processor | OVP-IN2, OVP-EIN | OVP-S3 |
