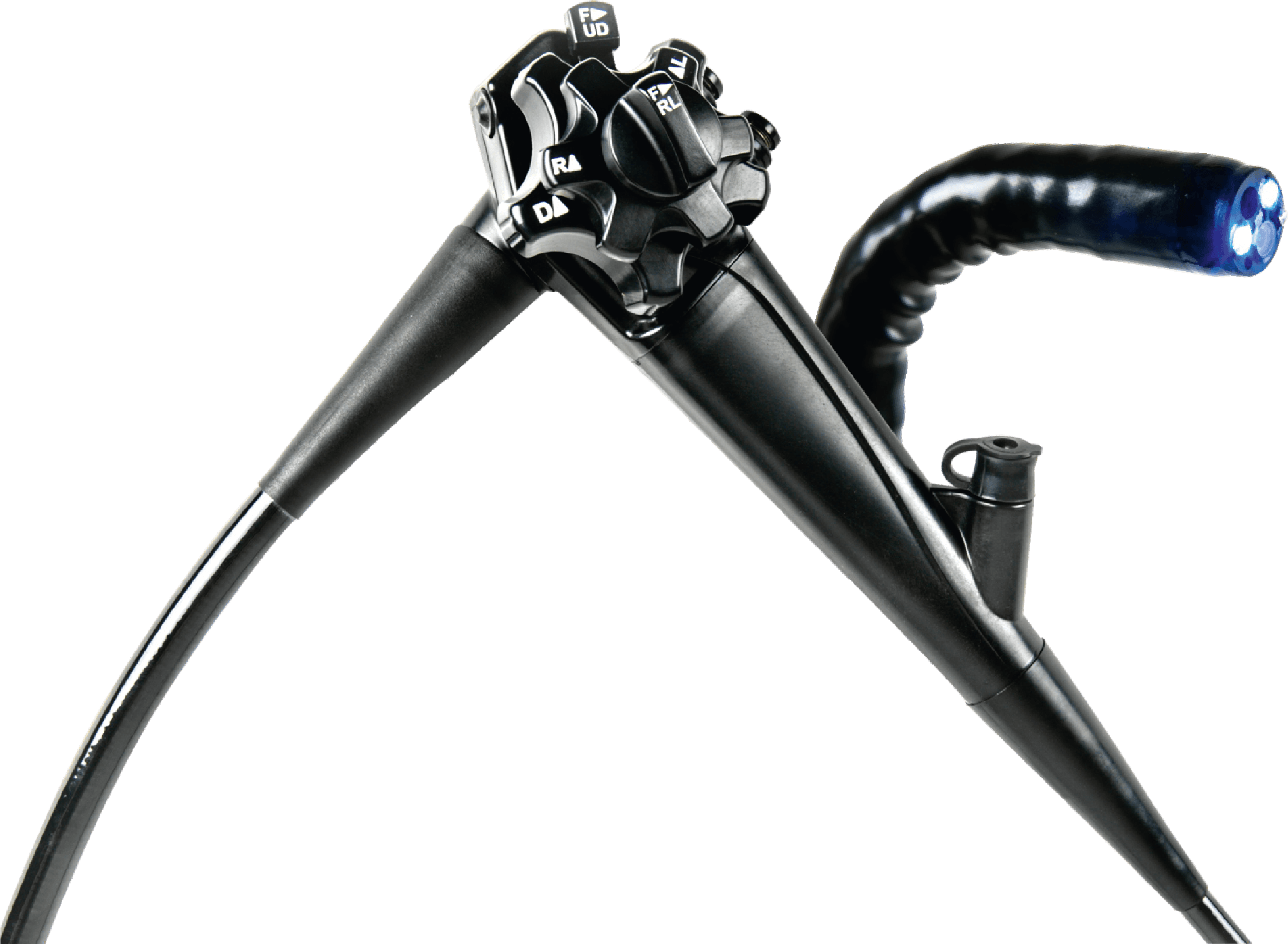

Ottomed’s Video Gastroscopes have been designed to enhance your endoscopy outcomes with a real-time and high-definition visualisation of the gastrointestinal system. Experience unmatched image quality with bright, true colour visualisations of the digestive system - powered by a unique technology patented in both India and Japan.
Advanced image processing algorithms also facilitate features such as digital chromoendoscopy - to enhance vessels and other tissues in the mucosal layer and assist in effective treatment and early diagnosis.
Furthermore, all Ottomed gastroscopes are engineered with a zero-fibre technology that enables users to perform complex manoeuvres with zero fibre damage, with a scope that acts as a natural extension of their hand.
With cutting edge imaging technologies and reliable engineering, Ottomed's gastroscopes are designed to help both the users and patients of a gastroenterology suite experience peace of mind.
Specification | OVG-mB2H | OVG-2H | OVG-S2+ |
---|---|---|---|
Image | ![]() | ![]() | ![]() |
Enquire | |||
Field Of View | 140° | 140° | 120° |
Direction Of View | Forward View | Forward View | Forward View |
Depth Of Field | 3-100mm | 3-100mm | 3-100mm |
Optical Technology mBLU | mBLU Mode 1 & mBLU Mode 2 | mBLU Mode 1 | mBLU Mode 1 |
Distal End Outer Diameter | 9.8mm | 9.8mm | 9.8mm |
Insertion Tube Outer Diameter | 9.5mm | 9.5mm | 9.5mm |
Distal End Enlarged |
|
|
|
Working Length | 1055mm | 1055mm | 1055mm |
Channel Inner Diameter | 2.8mm | 2.8mm | 2.8mm |
Minimum Visible Distance | 3mm from the distal end | 3mm from the distal end | 3mm from the distal end |
Angulation Range |
|
|
|
Compatible Video Processor | OVP-SEII Plus | OVP-SEII Plus, OVP-SEII | OVP-S3 |
Specification | OVG-2HUS | OVG-S2+US |
---|---|---|
Image | ![]() | ![]() |
Enquire | ||
Field Of View | 140° | 120° |
Direction Of View | Forward View | Forward View |
Depth Of Field | 3-100mm | 3-100mm |
Optical Technology mBLU | mBLU Mode 1 | mBLU Mode 1 |
Distal End Outer Diameter | 7.8mm | 7.8mm |
Insertion Tube Outer Diameter | 7.8mm | 7.8mm |
Distal End Enlarged |
|
|
Working Length | 1055mm | 1055mm |
Channel Inner Diameter | 2.2mm | 2.2mm |
Minimum Visible Distance | 3mm from the distal end | 3.5mm from the distal end |
Angulation Range |
|
|
Compatible Video Processor | OVP-SEII Plus, OVP-SEII | OVP-S3 |
