Endoscope Reprocessor
| Specification | Qubey-T | OEW-2 | OEW-3 |
|---|---|---|---|
| Image |  |  |  |
| Ambient Temperature | 10°C – 40°C | 10°C – 40°C | 10°C – 40°C |
| Relative Humidity | 30% to 85% | 30% to 85% | 30% to 85% |
| Water Supply Requirement | Flow Rate | Flow Rate | Flow Rate |
| 12L/min – 16L/min | 12L/min – 16L/min | 12L/min – 16L/min | |
| Pressure | 0.2MPa – 0.5MPa | 0.2MPa – 0.5MPa | 0.2MPa – 0.5MPa |
| Main Unit Specification | |||
| No. of Accommodated Endoscopes | 2 nos. | 2 nos. | 2 nos. |
| Disinfectant Tank Capacity | 25 Litres | 17 Litres | 25 Litres |
| Detergent Tank Capacity | 1.5 Litres | 1.5 Litres | 1.50 Litres |
| Alcohol Tank Capacity | 1.5 Litres | - | 1.50 Litres |
| Leakage Testing | Bubble detecting during immersion (Visual) | Bubble detecting during immersion (Visual) | Bubble detecting during immersion (Visual) |
| Operating Modes | |||
| Auto Mode | |||
| Manual Mode | |||
| Operations | Time Range | Time Range | |
| Wash cycle | 1 – 10 min | 1 – 10 min | |
| Disinfectant time | 1 – 99 min | 1 – 99 min | |
| Dry time | 1 – 10 min | 1 – 10 min | |
| Detergent wash time | 1 – 10 min | 1 – 10 min | |
| Alarm | At Low level End of process | ||
| Display | Touch Screen Panel | ||
| Dimension (L × W × H) | 600 × 600 × 600 mm | 600 × 600 × 600 mm | 600 × 600 × 600 mm |
| Weight | 60 Kg Approx | 60 Kg Approx | 60 Kg Approx |
| Power Supply | |||
| Input Voltage | 220 V | 220 V | 220 V |
| Allowable Voltage Fluctuation | ±10% | ±10% | ±10% |
| Input Current | 1.5 A | 1.5 A | 1.5 A |
| Frequency | 50Hz | 50Hz | 50Hz |
| Allowable Frequency Fluctuation | ±3 | ±3 | ±3 |

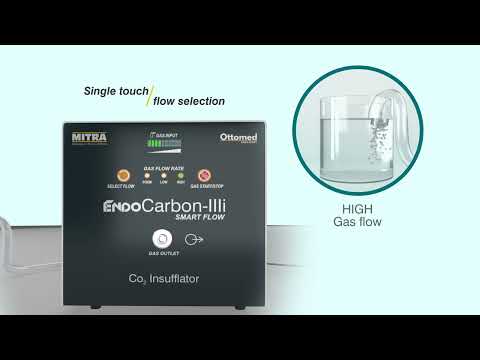

CO2 Insufflator
| Specifications | m.EC-IIIi | m.EC-III |
|---|---|---|
| Image |  |  |
| Operating Environment | ||
| Ambient Temperature | 10°C – 40°C | 10°C – 40°C |
| Relative Humidity | 30% to 85% | 30% to 85% |
| Main Unit Specifications | ||
| Pneumatics | ||
| Gas | CO₂ (Medical Grade) | CO₂ (Medical Grade) |
| Input Pressure | 1 bar – 7 bar | 1 bar – 7 bar |
| Flow Rate | POEM: 1.0 L/min ±10% LOW: 3.0 L/min ±10% HIGH: 4.5 L/min ±10% | POEM: 1.0 L/min ±10% LOW: 3.5 L/min ±10% HIGH: 5.0 L/min ±10% |
| Intelligent Flow Control | Applicable | — |
| Power Supply | ||
| Input Voltage | 100V - 240V | 100V - 240V |
| Allowable Voltage Fluctuation | ±10% | ±10% |
| Power Rating | 24VA | 24VA |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Allowable Frequency Fluctuation | ±3 Hz | ±3 Hz |
| Dimensions | ||
| Length | 220mm | 155mm |
| Width | 170mm | 255mm |
| Height | 145mm | 150mm |
| Weight | Approx. 2.3 Kg | Approx. 2.3 Kg |
Water Irrigation Pump
| Specifications: m.EP-II | ||
|---|---|---|
| Image |  | |
| Operating Environment | ||
| Ambient Temperature | 10°C – 40°C | |
| Relative Humidity | 30% to 85% | |
| Main Unit Specifications | ||
| Power Supply | ||
| Input Voltage | 100V - 240V | |
| Allowable Voltage Fluctuation | ±10% | |
| Current | 0.4A – 0.2A | |
| Frequency | 50Hz / 60Hz | |
| Water Flow Range | 100ml/min – 900ml/min | |
| Foot Switch Type | Pedal Type | |
| Flow Indicator | LED | |
| Dimensions | ||
| Length | 255mm | |
| Width | 265mm | |
| Height | 150mm | |
| Weight | Approx. 2.7 Kg Without Water Tank | |
