Trusted by experts. Proven in performance.

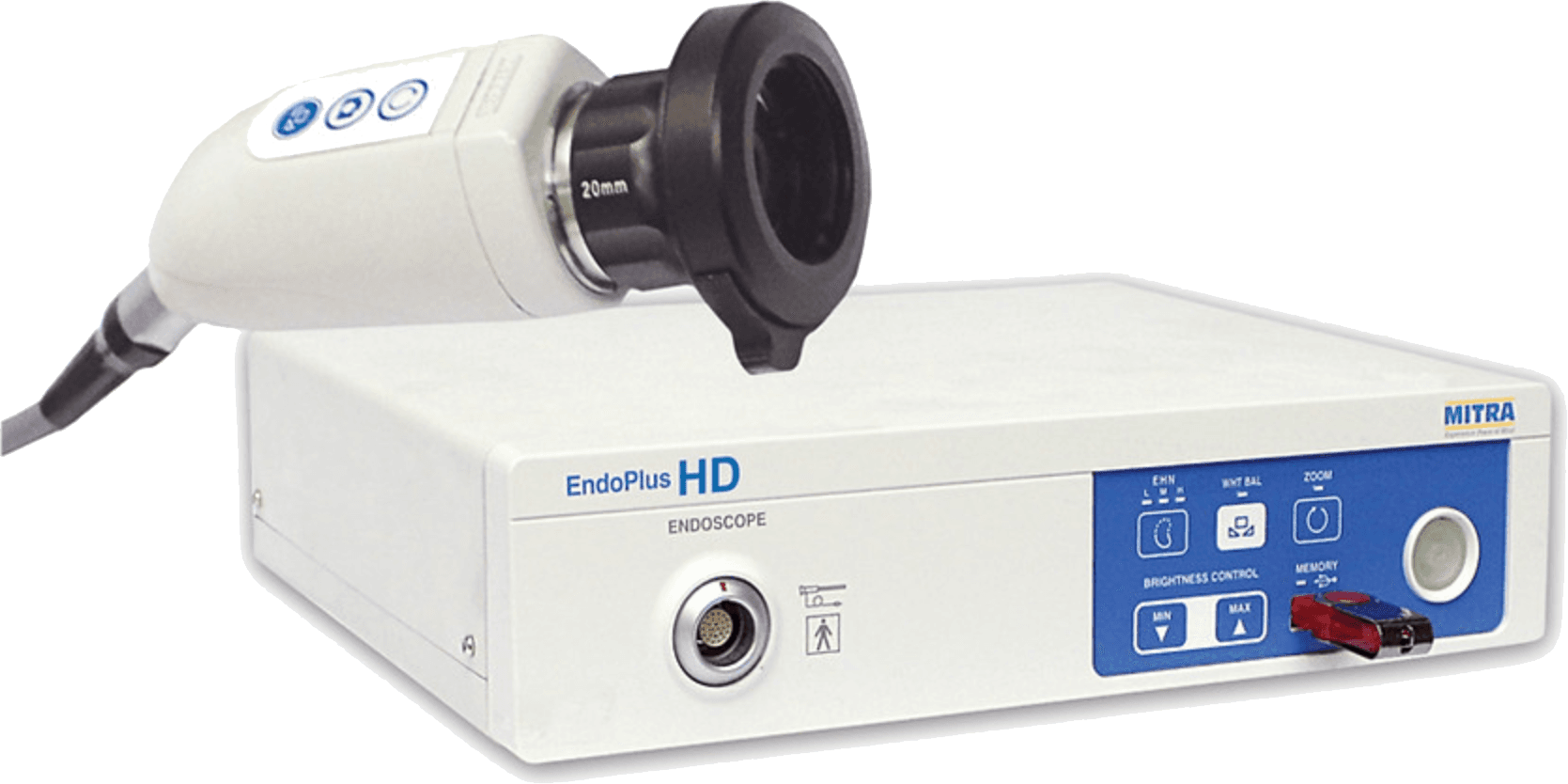

Model	OVP-EP
Ambient Temperature	10°C - 40°C
Relative Humidity	30% to 85%
Power Supply
Voltage	100V to 240V
Voltage Fluctuation	±10%
Frequency	50/60Hz
Frequency Fluctuation	±3Hz
Current Rating	0.7A-0.3A
Fuse Rating	4A, 250V
Image Pick-up Element	CMOS - 2MP
Resolution	Horizontal 1080 lines
S/N	49 dB min.
Compatibility	Camera head is compatible with Ottomed HD Video System. Auto white balance should be adjusted.
Classification	Protection level of the fitting part BF type.
Mounting Method	Screw mounting M22x0.75
Elimination of Moiré	HD video camera head is available with built-in moiré elimination filter.
Waterproof Level	Watertight when fitting the video adapter to the HD video camera head and fitting the waterproof cap to the camera connector.
Cleaning, Disinfection	Water disinfect by fitting the video adapter to the HD video camera head and fitting the waterproof cap to the camera connector.
Remote Switch 1	Zoom
Remote Switch 2	Record
Remote Switch 3	White Balance
Video Signal Output	HDMI, HD-SDI & VBS, Simultaneous output is possible.
Enhancement	Fine patterns or edges in the endoscopic images can be enhanced electrically to increase the image sharpness.
Switch Enhancement Mode	The enhancement level can be selected from 3 levels (Low, Med and High) using the image enhancement mode on the front button panel.
External Storage	USB Memory Stick
Dimensions	305(W) x 235(L) x 80(H) mm
Weight	3.5 kg approx.

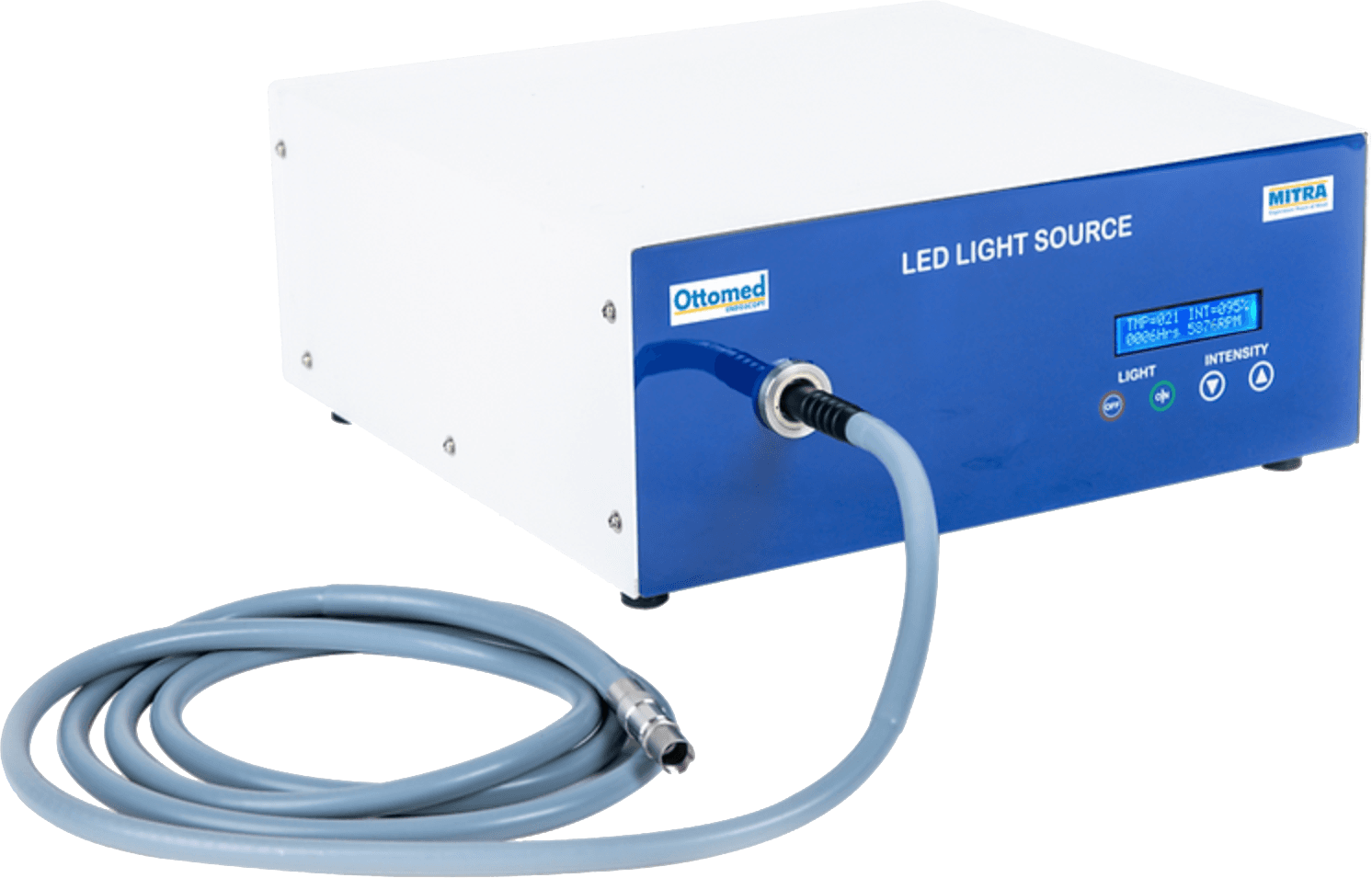

Features
Long life LED with 5000 Hrs.
Brightness control levels from 50% to 100%.
Variable temperature settings for heating protection or undesired heat generation.
Flicker free steady LED light source.
Specifications
Ambient Temperature	10°C - 40°C
Relative Humidity	30% - 85%
Input Voltage	100V - 240V
