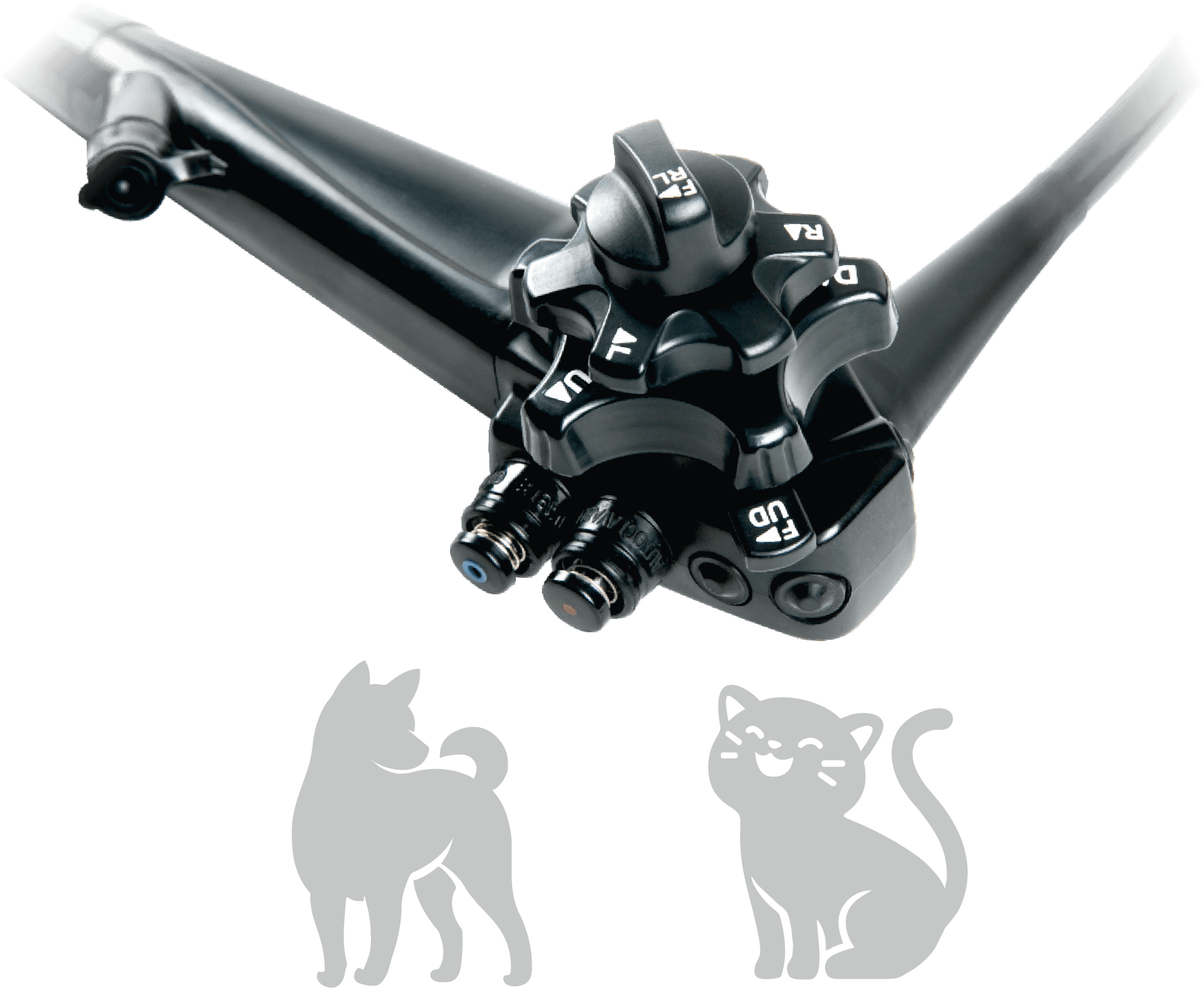

Veterinary Video Endoscope
OVV-S2+ US
Veterinary
Key Product Information
Application
Veterinary
Optical Technology
mBLU mode 1
Compatible Processor
OVP-S3
Complete Specifications
Optical System
Field of View
120°
Direction of View
Forward View
Depth of Field
3-100mm
Optical Technology
mBLU mode 1
Insertion Tube
Distal End Outer Diameter
7.8mm
Insertion Tube Outer Diameter
7.8mm
Distal End Configuration
- Air/Water Nozzle
- Illumination LEDs (W)
- Image Sensor
- Instrument Channel Outlet
Instrument Channel
Working Length
- I: 1400mm
- S: 1055mm
Channel Inner Diameter
2.8mm
Minimum Visible Distance
3mm from the distal end
Bending Section
Angulation Range
- UP 180°
- DOWN 120°
- RIGHT 120°
- LEFT 120°
System Compatibility
Compatible Video Processor
OVP-S3
