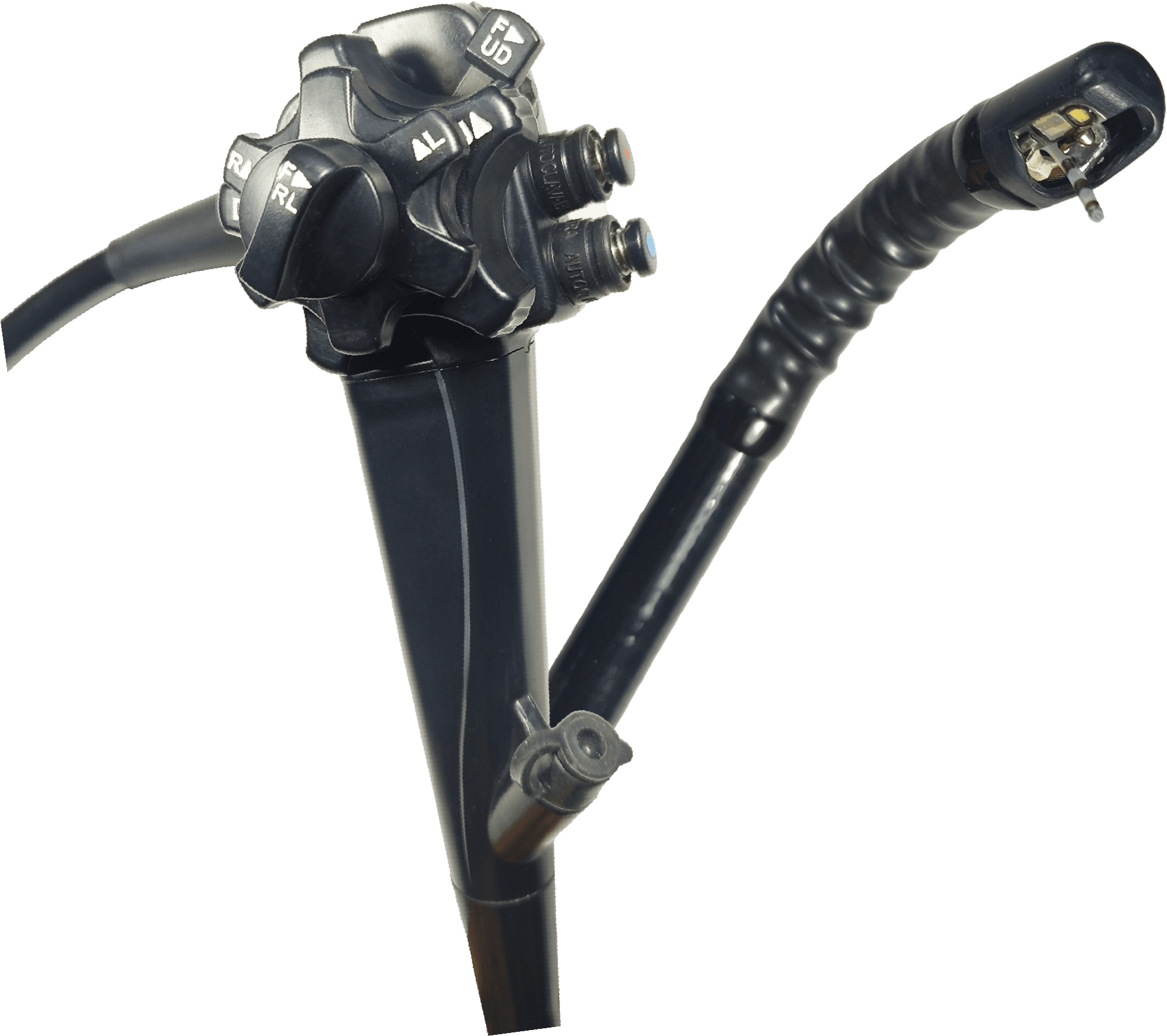

HD Video Duodenoscope
OVD-S2+
Gastroenterology
Key Product Information
Application
Gastroenterology
Optical Technology
mBLU Mode 1
Compatible Processor
OVP-S3
Complete Specifications
Optical System
Field of View
120°
Direction of View
Backward side viewing 5°
Depth of Field
3-60mm
Optical Technology
mBLU Mode 1
Insertion Tube
Distal End Outer Diameter
13.5mm
Insertion Tube Outer Diameter
12.5mm
Distal End Configuration
- Air/Water Nozzle
- Illumination LEDs (W)
- Objective Lens
- Instrument Channel Outlet
- Forceps Elevator
Instrument Channel
Working Length
1245mm
Channel Inner Diameter
4.2mm
Minimum Visible Distance
10mm from the distal end
Bending Section
Angulation Range
- UP 120°
- DOWN 90°
- RIGHT 110°
- LEFT 90°
System Compatibility
Compatible Video Processor
OVP-S3
Interested in OVD-S2+?
Contact Ottomed for product information, compatibility and commercial enquiries.
