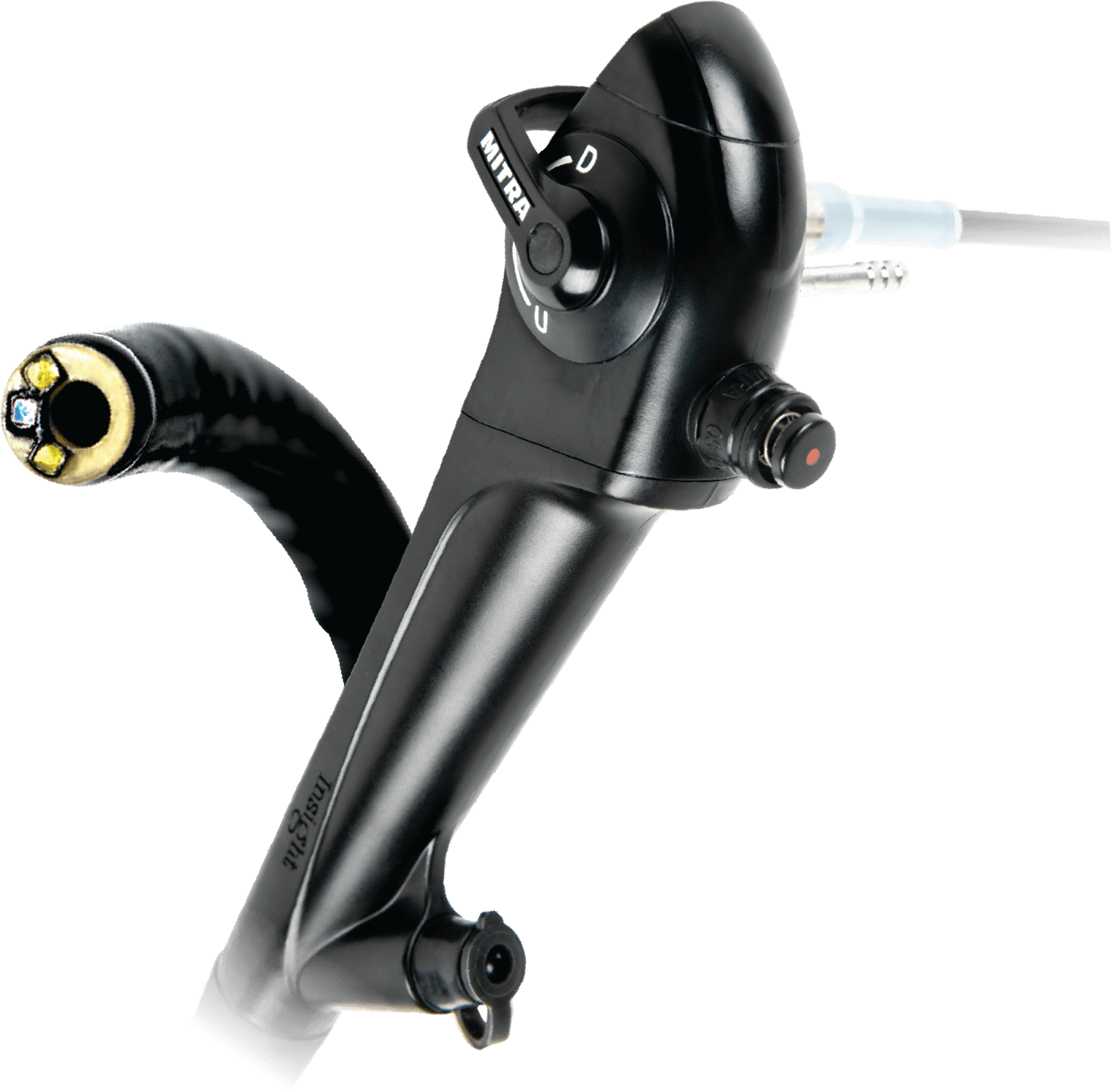

Video Bronchoscope
OVB-S2+, OVB-XS2+, OVB-PS2+, OVB-XPS2+, OVB-CS2+
Pulmonology
Key Product Information
Application
Pulmonology
Optical Technology
mBLU mode 1
Compatible Processor
OVP-S3
Complete Specifications
Optical System
Field of View
120°
Direction of View
Forward View
Depth of Field
3-60mm
Optical Technology
mBLU mode 1
Insertion Tube
Distal End Outer Diameter
- OVB-S2+, OVB-XS2+: 6mm
- OVB-PS2+, OVB-XPS2+: 5mm
- OVB-CS2+: 3.4mm
Insertion Tube Outer Diameter
- OVB-S2+, OVB-XS2+: 6mm
- OVB-PS2+, OVB-XPS2+: 5mm
- OVB-CS2+: 3.3mm
Distal End Configuration
- Illumination LEDs (W)
- Image Sensor
- Instrument Channel Outlet
Instrument Channel
Working Length
600mm
Channel Inner Diameter
- OVB-S2+: 2.8mm
- OVB-XS2+: 3.2mm
- OVB-PS2+: 2mm
- OVB-XPS2+: 2.2mm
- OVB-CS2+: 1.2mm
Minimum Visible Distance
3mm from the distal end
Bending Section
Angulation Range
- UP 180°
- DOWN 130°
Laser Compatibility
Compatibility
Nd: YAG,
810nm Diode
810nm Diode
System Compatibility
Compatible Video Processor
OVP-S3
