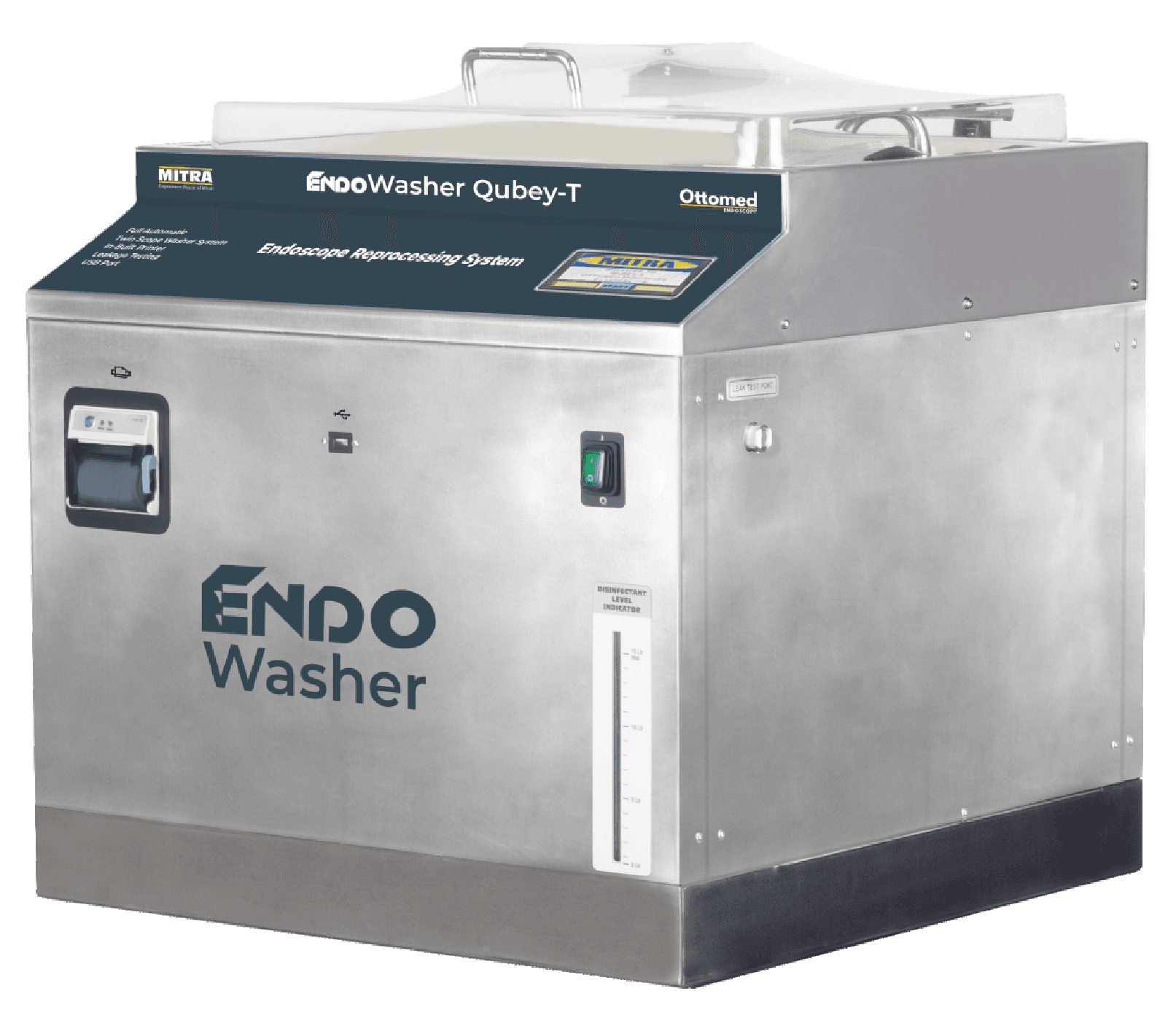

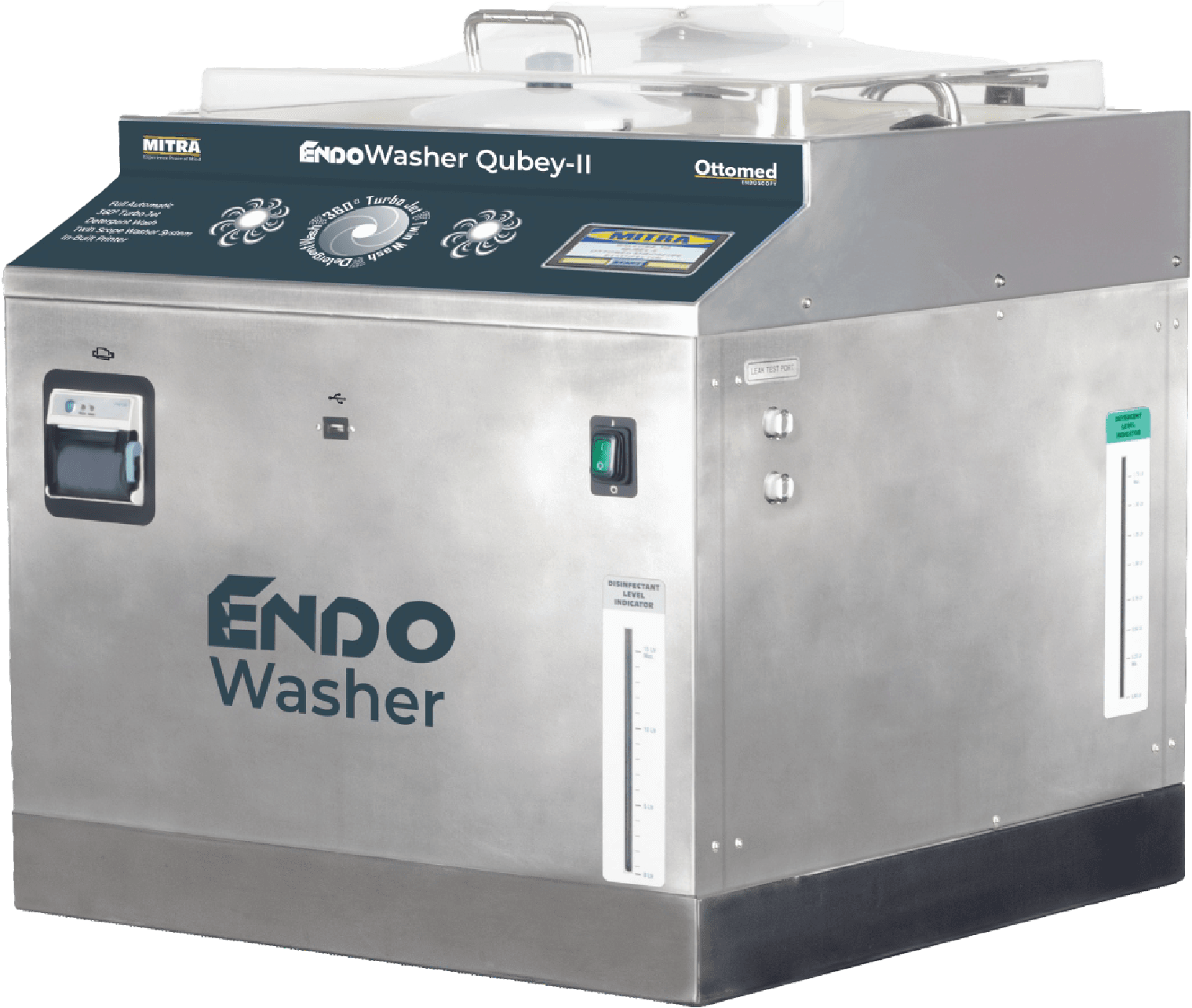

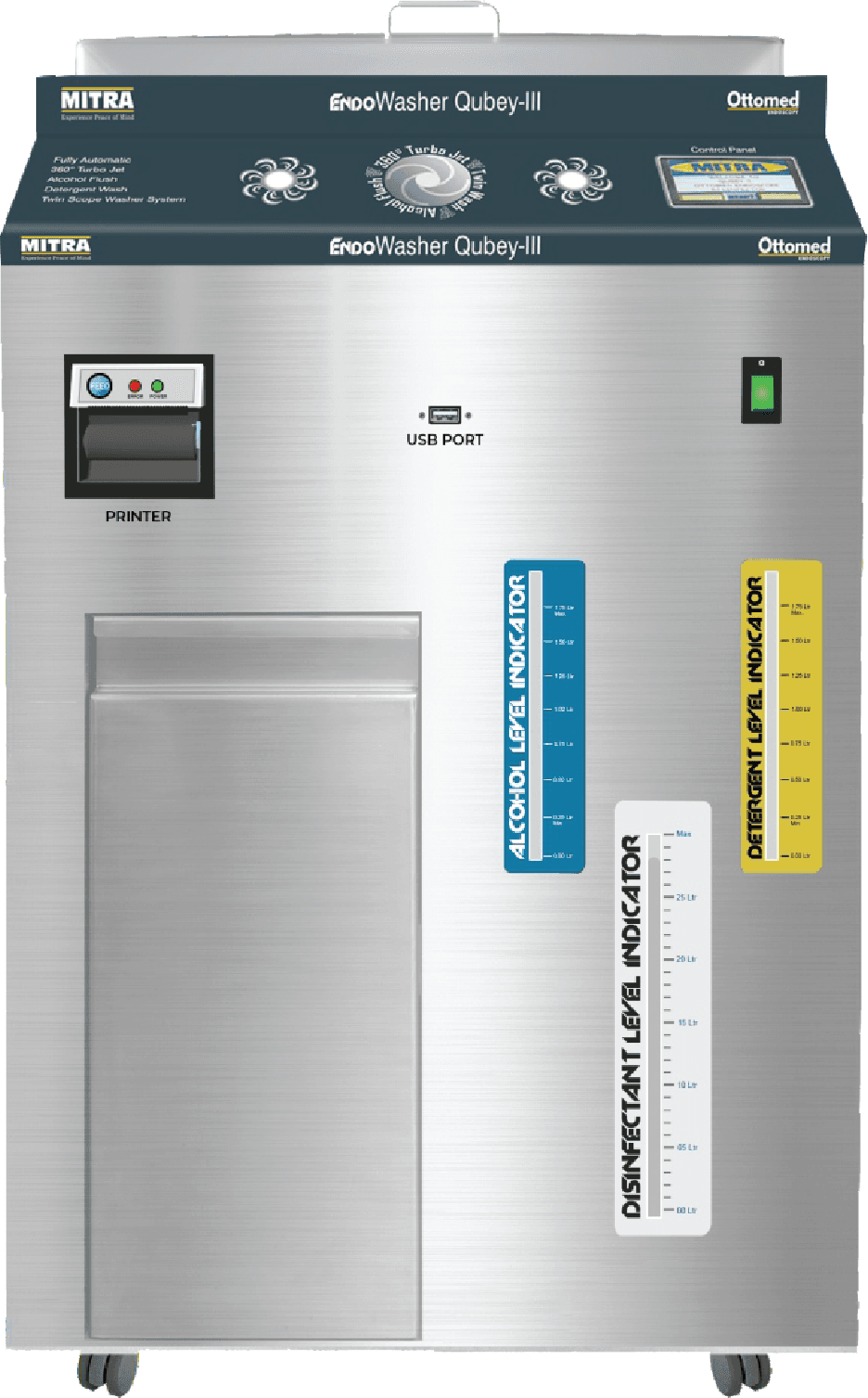

| Specification | Qubey-T | OEW-2 | OEW-3 |
|---|---|---|---|
| Image |  |  |  |
| Video Description | |||
| Description | Top Features:
| Top Features:
| Top Features:
|
| Ambient Temperature | 10°C – 40°C | 10°C – 40°C | 10°C – 40°C |
| Relative Humidity | 30% to 85% | 30% to 85% | 30% to 85% |
| Water Supply Requirement | |||
| Flow Rate: 12L/min – 16L/min | Flow Rate: 12L/min – 16L/min | Flow Rate: 12L/min – 16L/min | |
| Pressure: 0.1MPa – 0.4MPa | Pressure: 0.2MPa – 0.5MPa | Pressure: 0.2MPa – 0.5MPa | |
| Main Unit Specification | |||
| No. of Accommodated Endoscopes | 2 nos. | 2 nos. | 2 nos. |
| Disinfectant Tank Capacity | 15 Litres | 17 Litres | 25 Litres |
| Detergent Tank Capacity | NA | 1.50 Litres | 1.50 Litres |
| Alcohol Tank Capacity | NA | NA | 1.50 Litres |
| Leakage Testing | Bubble detecting during immersion (Visual) | Bubble detecting during immersion (Visual) | Bubble detecting during immersion (Visual) |
| Operating Modes | |||
| Auto Mode | |||
| Manual Mode | Time Range | Time Range | Time Range |
| Wash cycle | 1 – 20 Cycles | 1 – 10 min | 1 – 10 min |
| Disinfectant time | 1 – 99 min | 1 – 99 min | 1 – 99 min |
| Dry time | 1 – 10 min | 1 – 10 min | 1 – 10 min |
| Detergent wash time | NA | 1 – 10 min | 1 – 10 min |
| Alarm | At Low level End of process | ||
| Display | Touch Screen Panel | ||
| Dimension (L × W × H) | 600 × 600 × 600 mm | 600 × 600 × 600 mm | 750 x 690 x 1040 mm |
| Weight | 55 Kg Approx | 60 Kg Approx | 80 Kg Approx |
| Power Supply | |||
| Input Voltage | 220 V | 220 V | 220 V |
| Allowable Voltage Fluctuation | ±10% | ±10% | ±10% |
| Input Current | 1.5 A | 1.5 A | 1.5 A |
| Frequency | 50Hz | 50Hz | 50Hz |
| Allowable Frequency Fluctuation | ±3 | ±3 | ±3 |

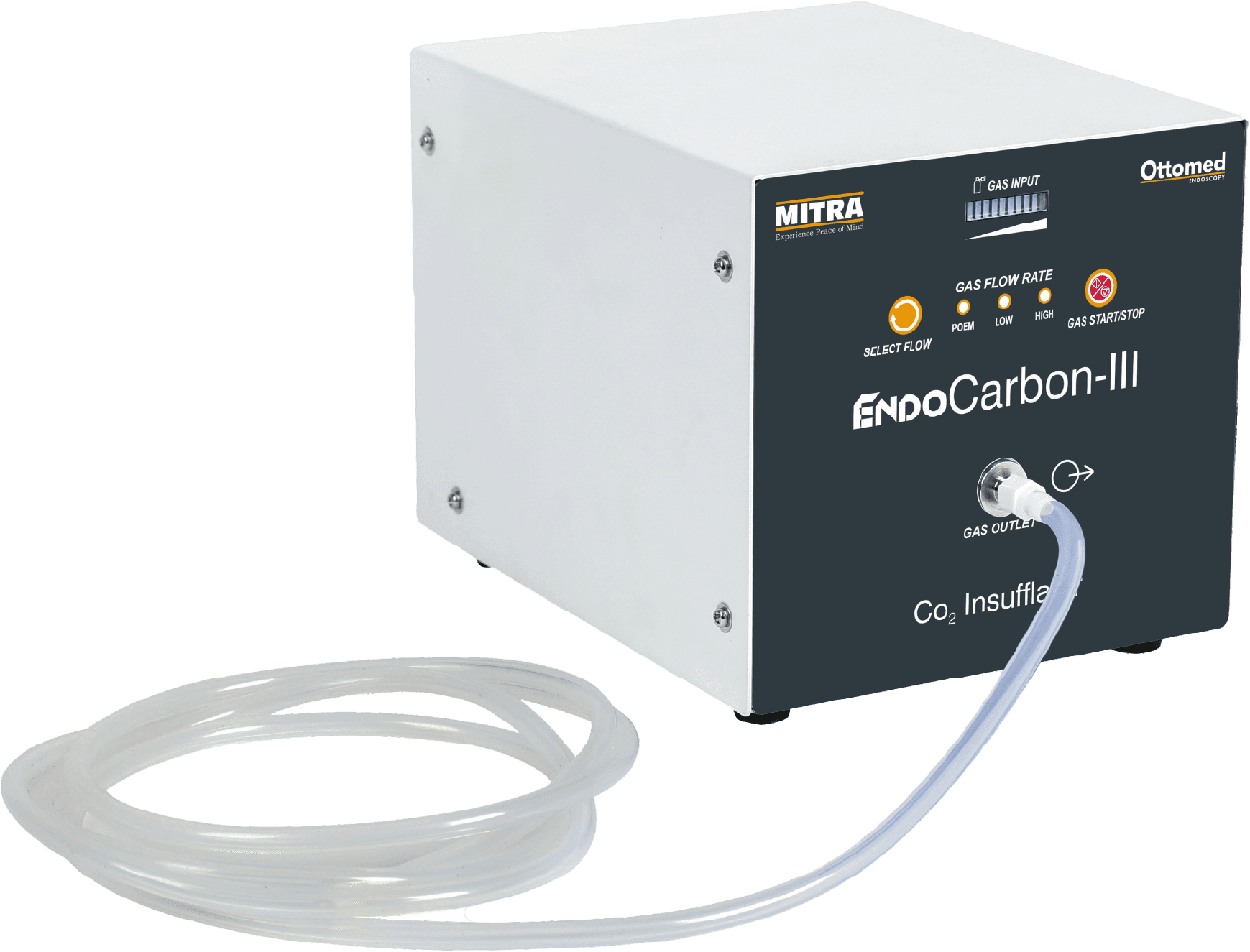

| Specifications | m.EC-IIIi | m.EC-III |
|---|---|---|
| Image |  |  |
| Video Description | ||
| Description | Endocarbon IIIi’s unique efficient intelligent CO2 Gas smart flow technology is environment friendly & makes procedures hassle-free, faster and helps save on CO2 costs. Features:
| CO2 insufflation to patient stomach/Colon reduces distention, abdominal pain, bloating as studies confirmed CO2 is absorbed 150 times faster than normal air and promptly eliminated via lungs & speed up recovery afterwards. Features:
|
| Operating Environment | ||
| Ambient Temperature | 10°C – 40°C | 10°C – 40°C |
| Relative Humidity | 30% to 85% | 30% to 85% |
| Main Unit Specifications | ||
| Pneumatics | ||
| Gas | CO₂ (Medical Grade) | CO₂ (Medical Grade) |
| Input Pressure | 1 bar – 7 bar | 1 bar – 7 bar |
| Flow Rate | POEM: 1.0 L/min ±10% LOW: 3.0 L/min ±10% HIGH: 4.5 L/min ±10% | POEM: 1.0 L/min ±10% LOW: 3.5 L/min ±10% HIGH: 5.0 L/min ±10% |
| Intelligent Flow Control | Applicable | — |
| Power Supply | ||
| Input Voltage | 100V - 240V | 100V - 240V |
| Allowable Voltage Fluctuation | ±10% | ±10% |
| Power Rating | 24VA | 24VA |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Allowable Frequency Fluctuation | ±3 Hz | ±3 Hz |
| Dimensions | ||
| Length | 220mm | 155mm |
| Width | 170mm | 255mm |
| Height | 145mm | 150mm |
| Weight | Approx. 2.3 Kg | Approx. 2.3 Kg |

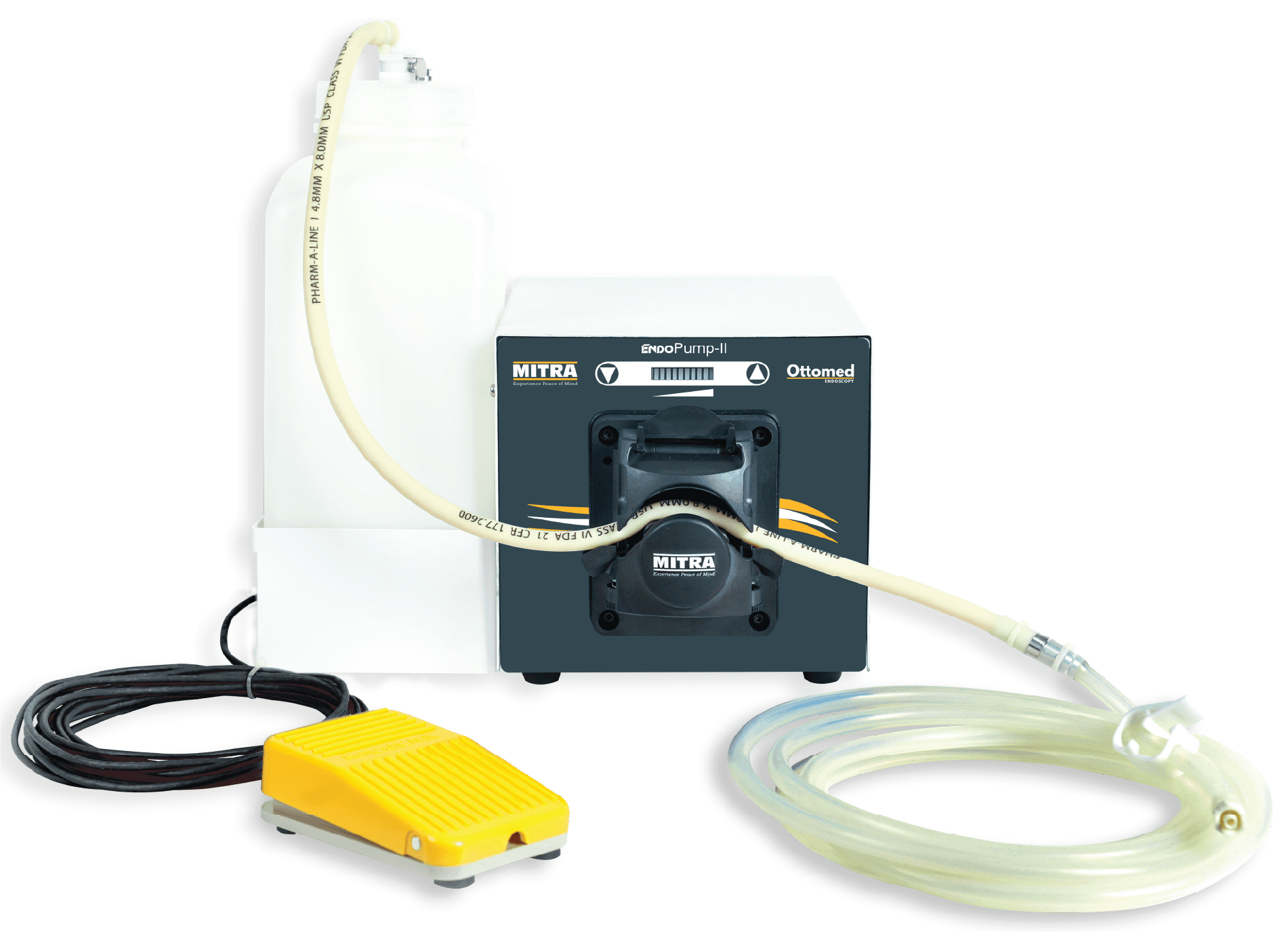

| Specifications: m.EP-II | ||
|---|---|---|
| Image |  | |
| Video Description | ||
| Description | Peristaltic Water Irrigation PumpEndoPump enables to wash colonic mucosa, bleeding area precisely & gives greater visibility for better detection and diagnosis. Top Features:
| |
| Operating Environment | ||
| Ambient Temperature | 10°C – 40°C | |
| Relative Humidity | 30% to 85% | |
| Main Unit Specifications | ||
| Power Supply | ||
| Input Voltage | 100V - 240V | |
| Allowable Voltage Fluctuation | ±10% | |
| Current | 0.4A – 0.2A | |
| Frequency | 50Hz / 60Hz | |
| Water Flow Range | 100ml/min – 900ml/min | |
| Foot Switch Type | Pedal Type | |
| Flow Indicator | LED | |
| Dimensions | ||
| Length | 255mm | |
| Width | 265mm | |
| Height | 150mm | |
| Weight | Approx. 2.7 Kg Without Water Tank | |
